PS LOUVER

DESCRIPTION

Louver serves to increase airflow, alleviate heat and humidity in the building, and hinder drizzle from entering into the building without obstructing ventilation. ​Raw material used to manufacture louver are Zincalume and Colorbond, products from NS Bluescope (Thailand) Co.,Ltd

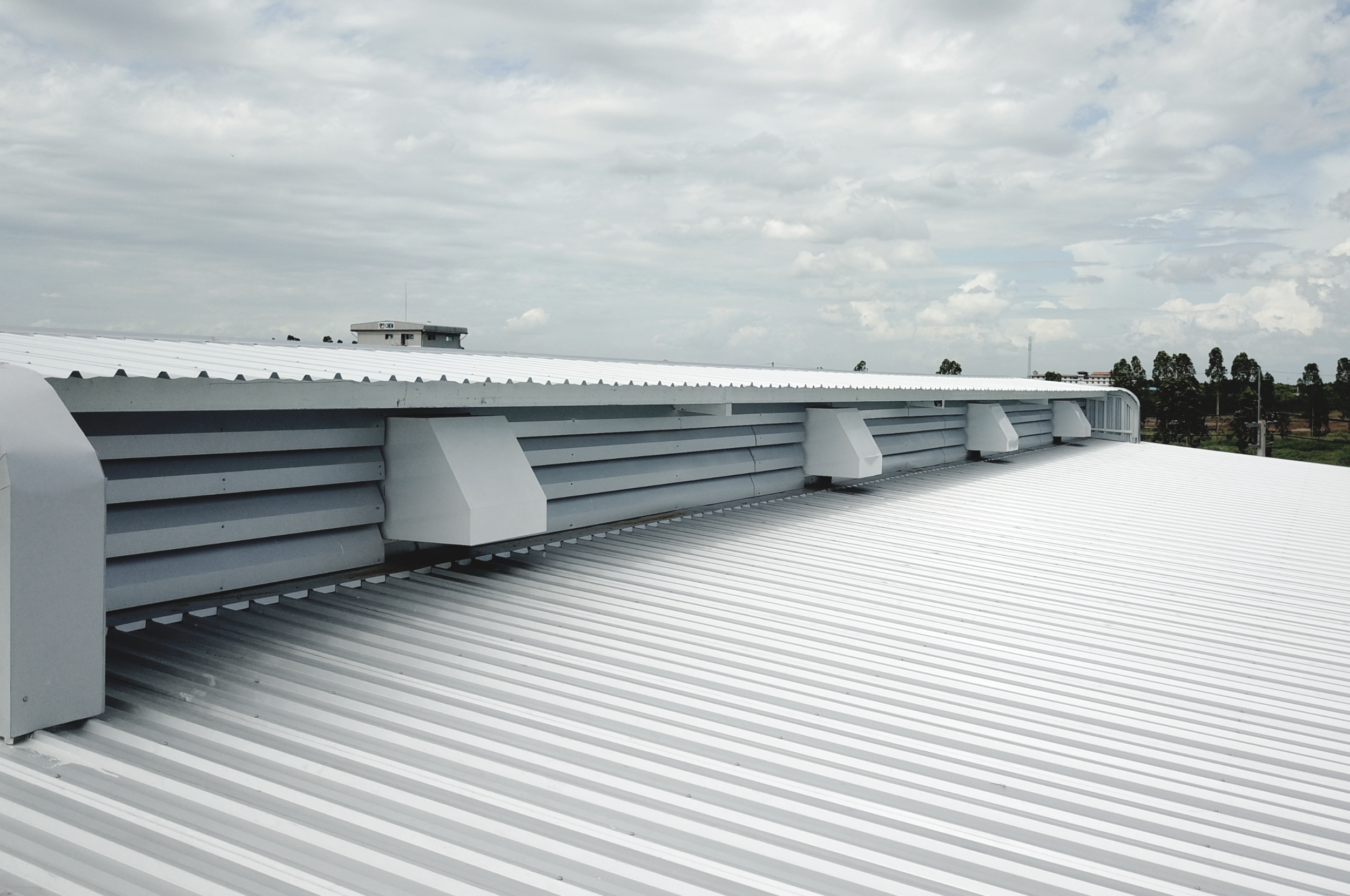

Screen Shot 2019-03-08 at 7.32.43 PM.png

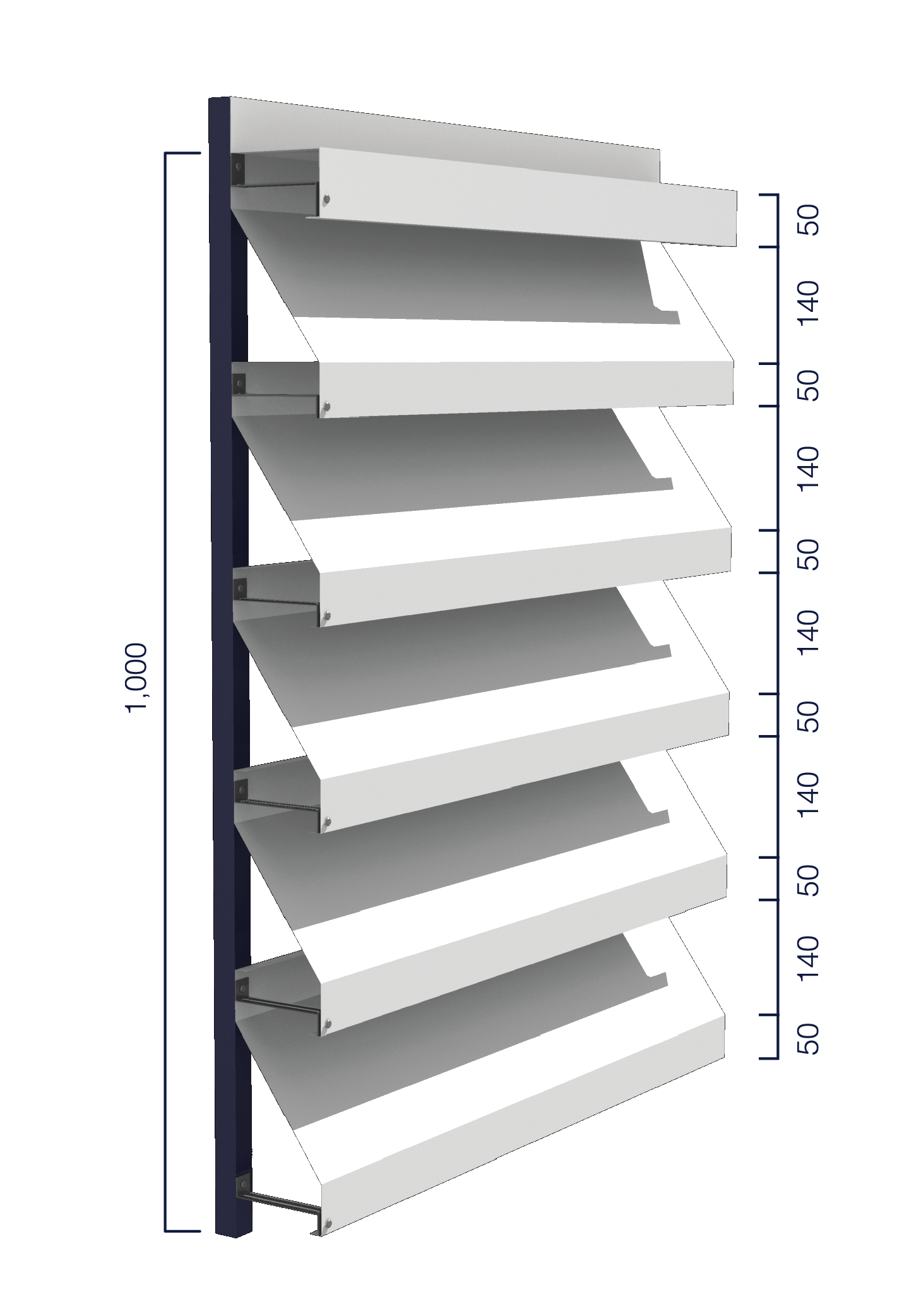

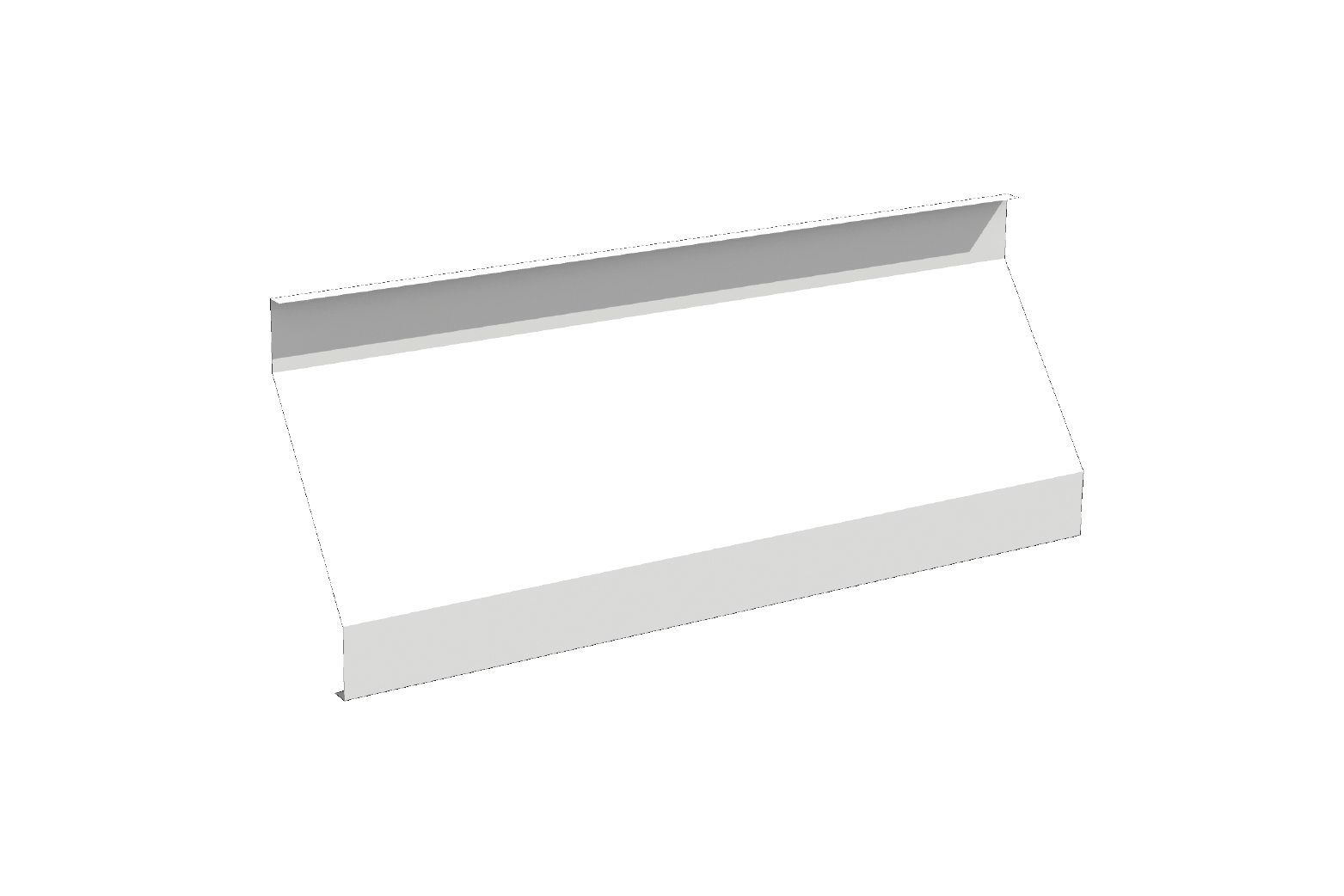

  • TYPE - 300

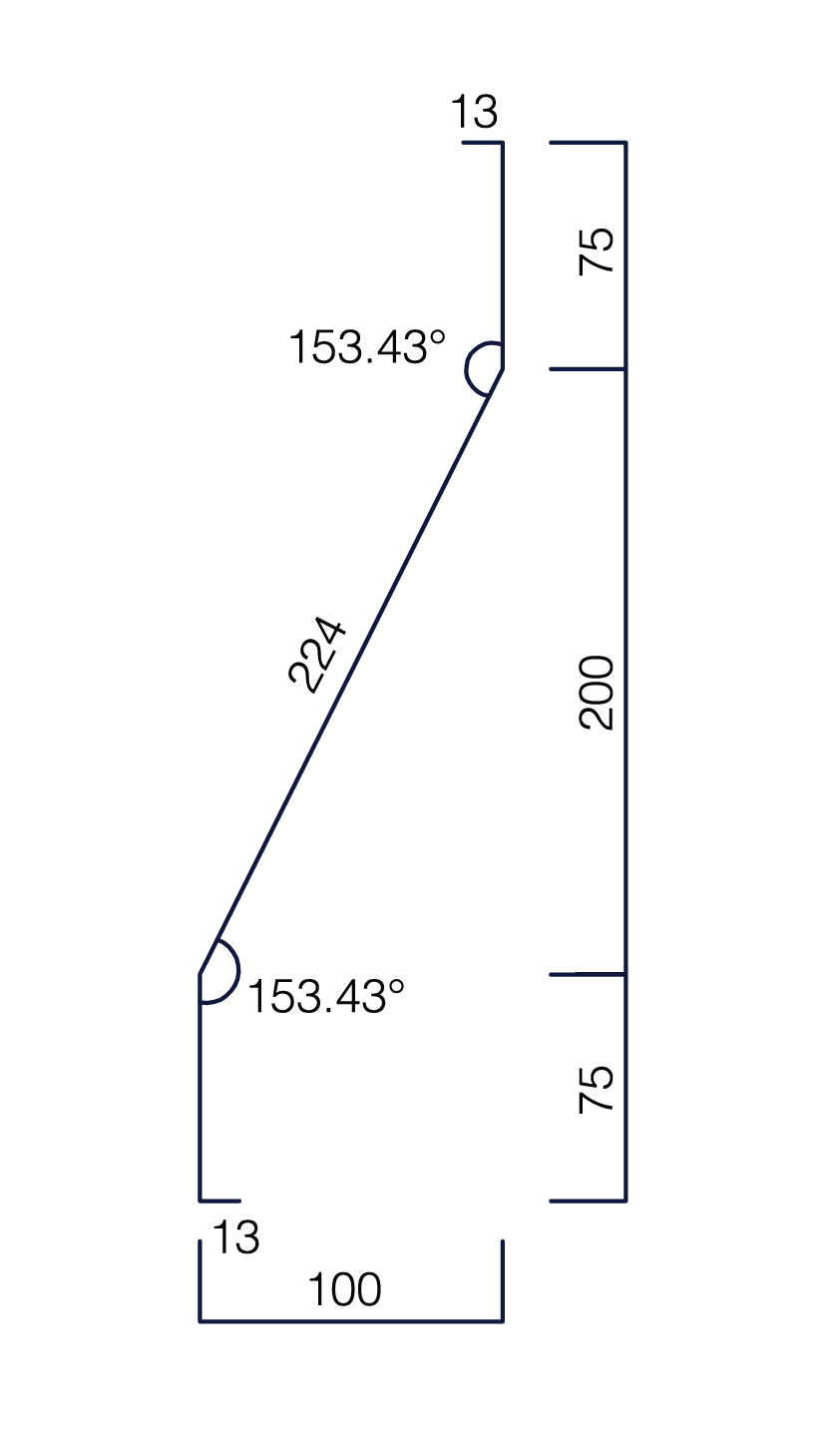

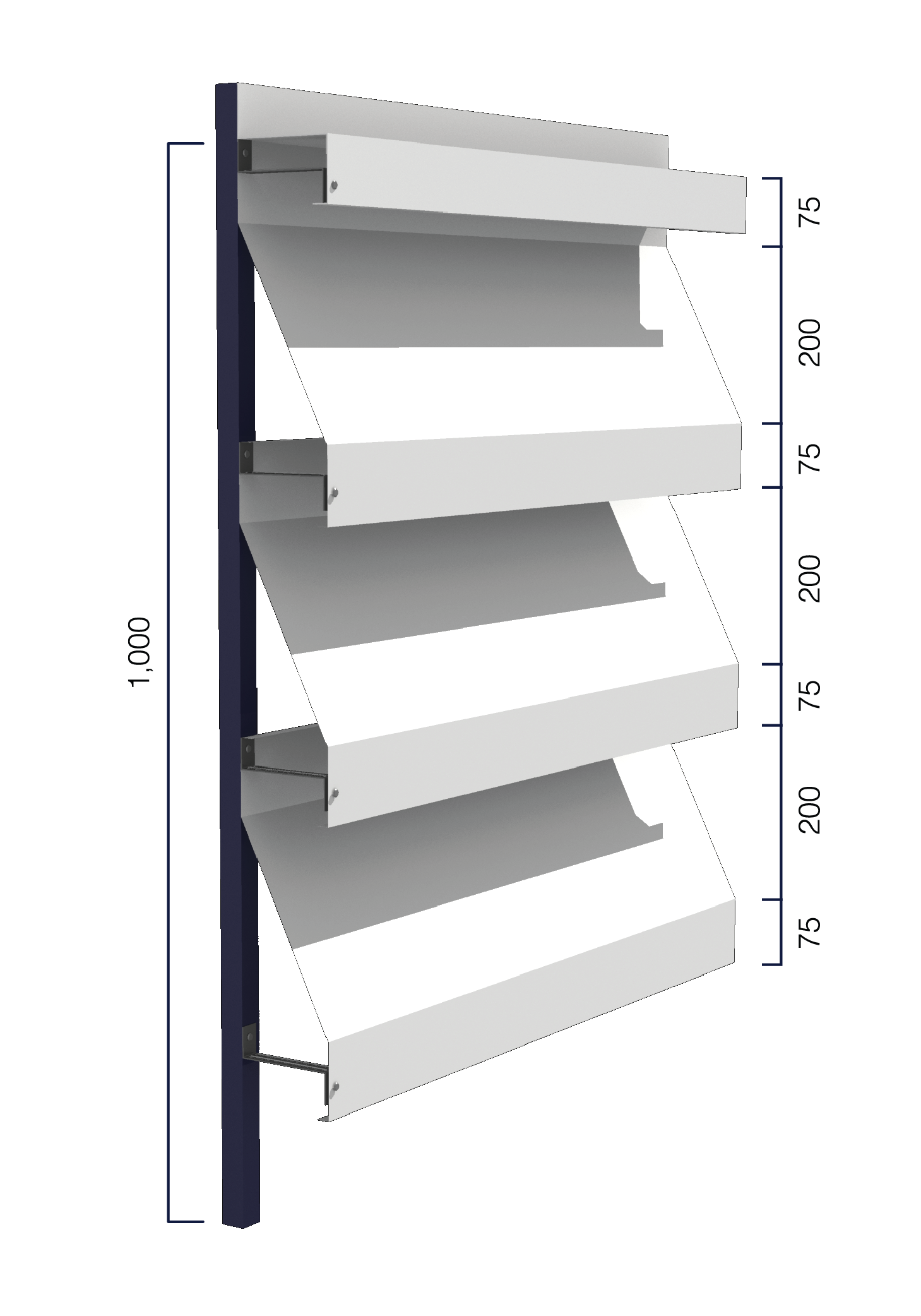

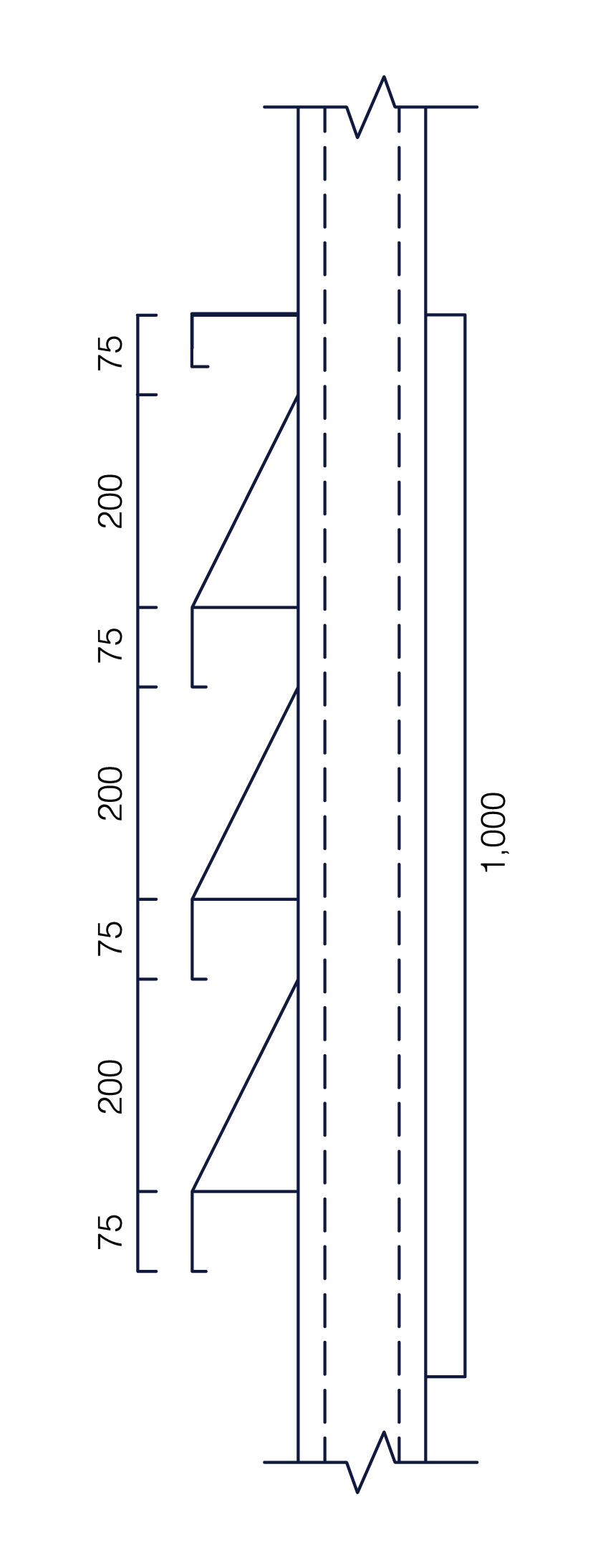

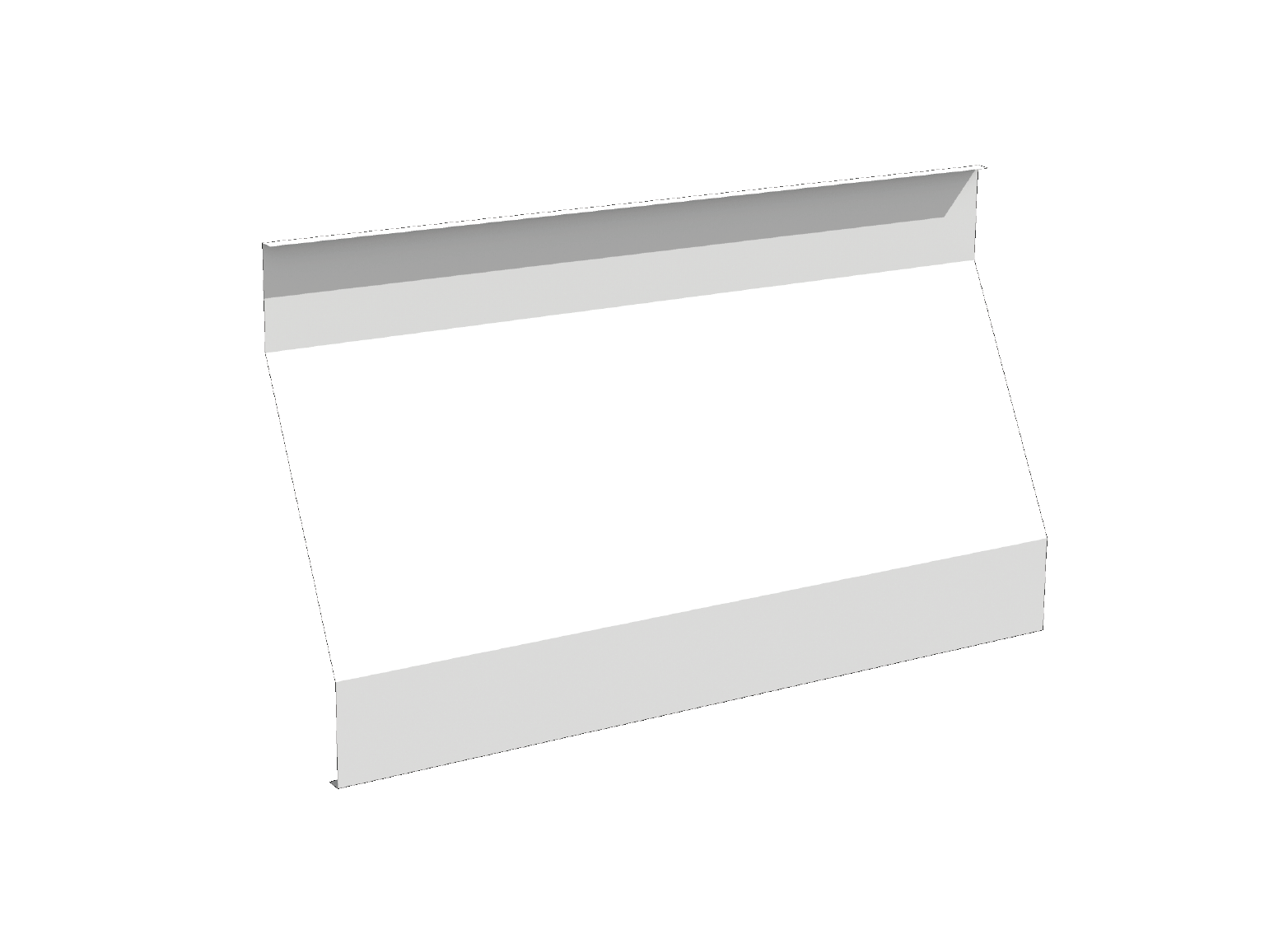

  • TYPE - 400

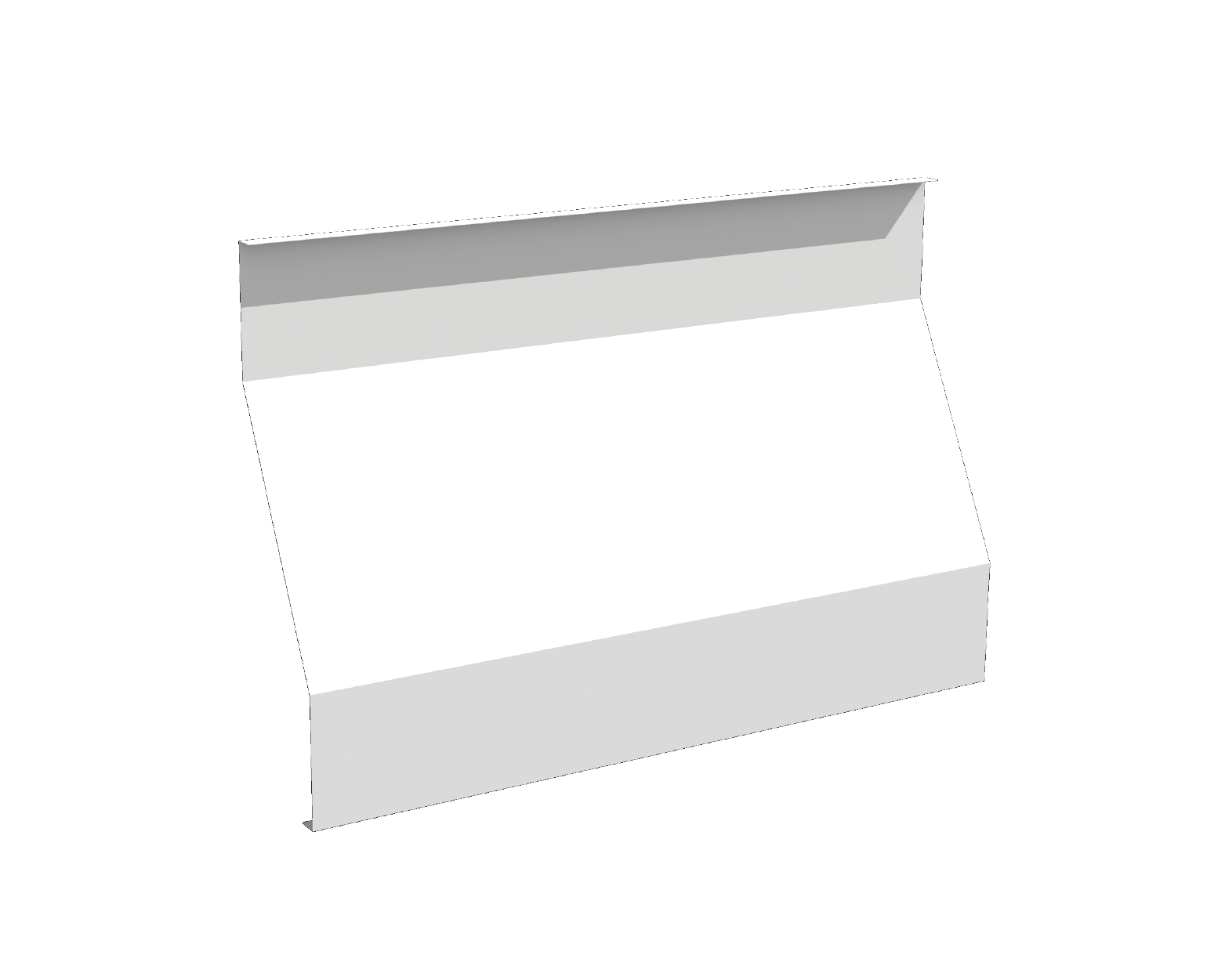

  • TYPE - 457

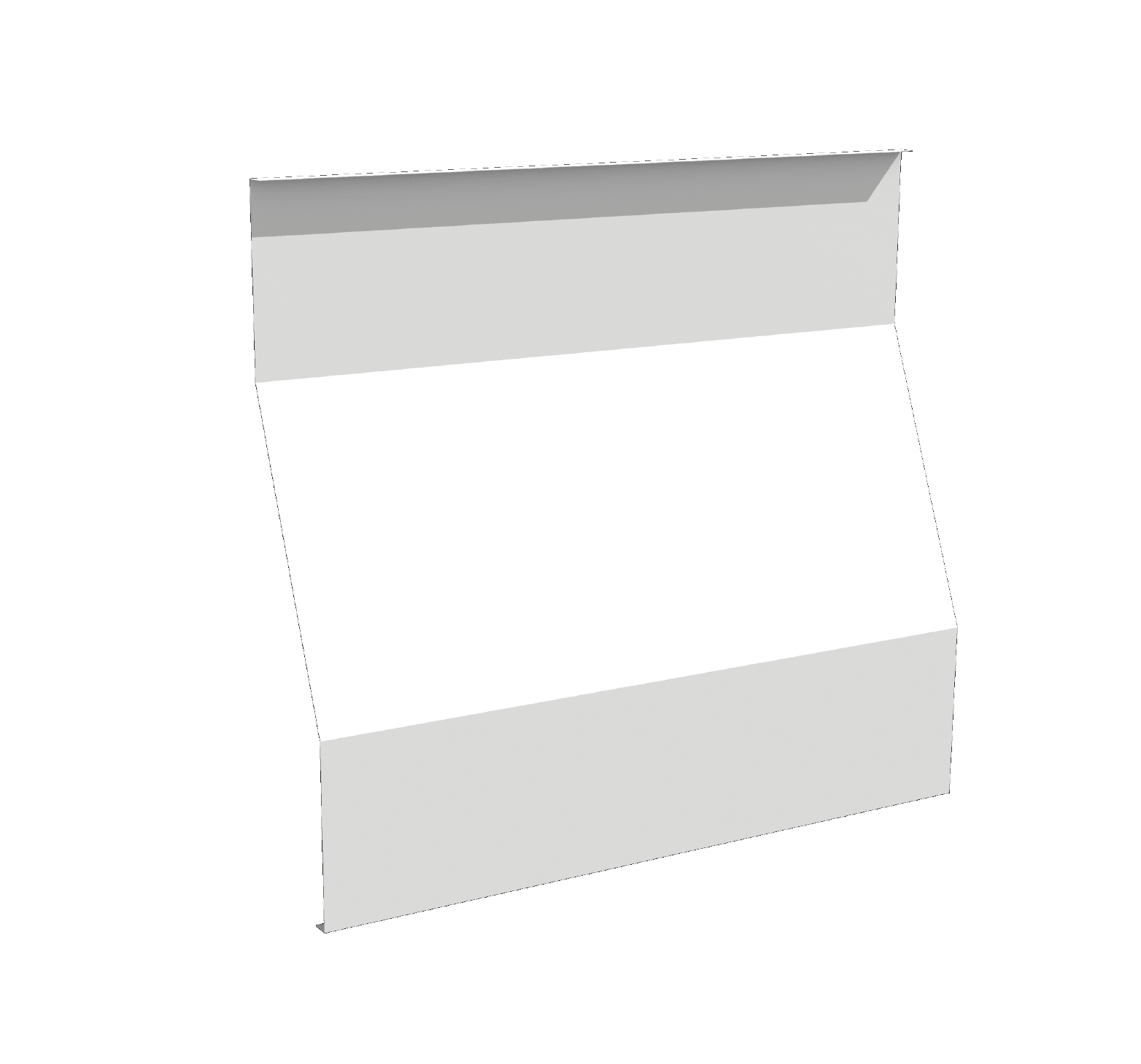

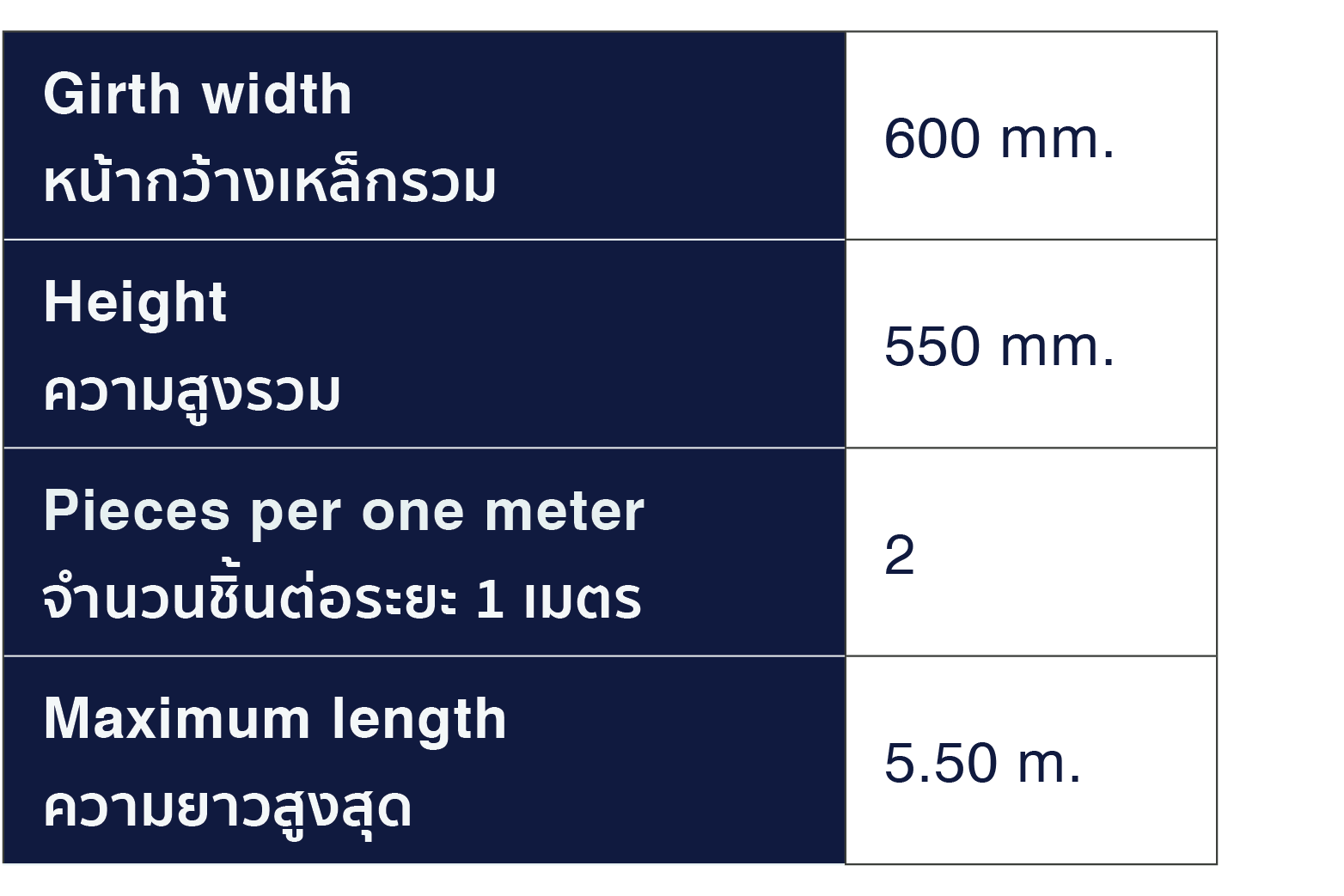

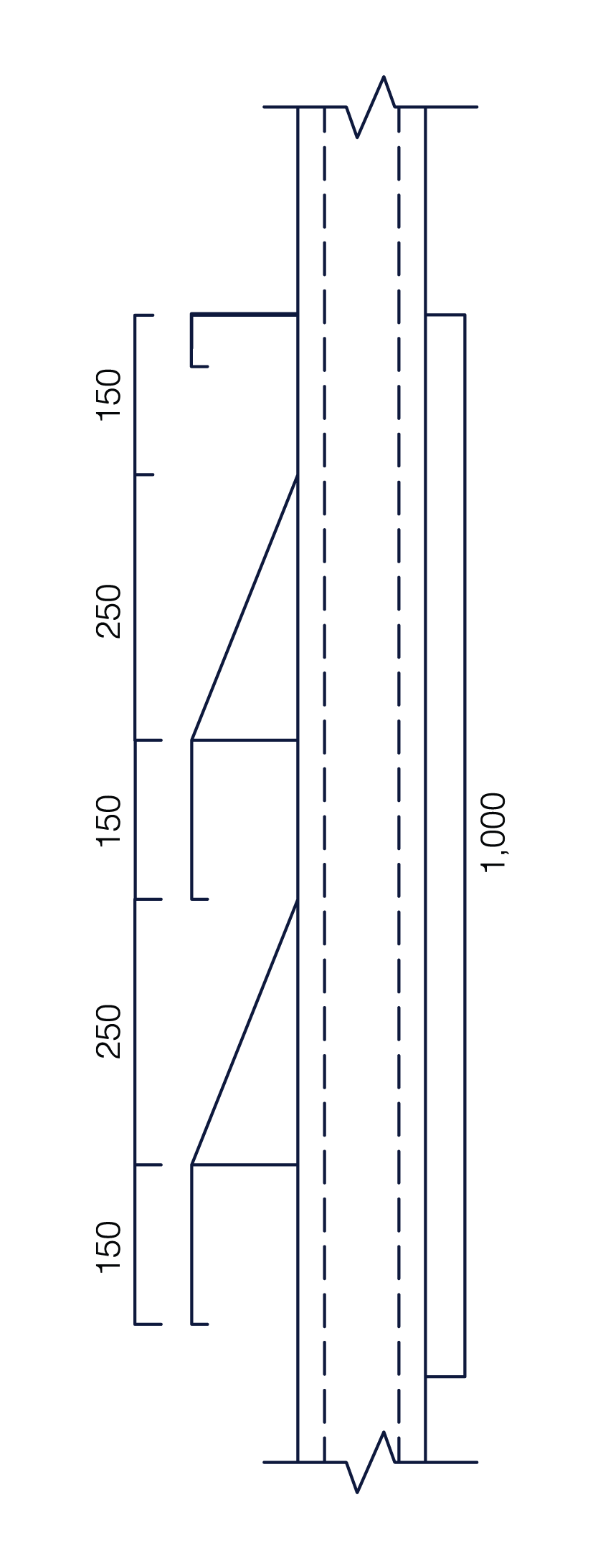

  • TYPE - 600



  • ACCESSORIES



Connector is used as an accessory for louver, necessary for installation. Connector helps fix the louver to steel frame, securing the strength of the louver with the structure.

  • FLASHING



Louver flashing is used to cover the joint between louver and siding for aesthetic appeal. Moreover, it can prevent water from flowing into the building as well.
